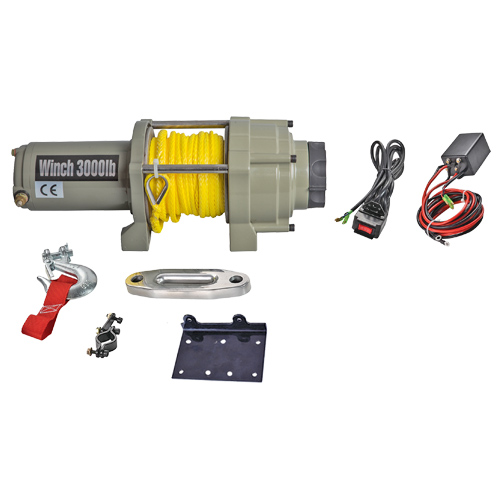

ATV Winch 3000(12V)



3000lbs(1361kg) Electric Winch
Item No.: 400010 Cable Winch
Item No.: 400011 Rope Winch
Rated Line Pull 3000lb(1361kg)Single Line
Motor 1.1KW/1.47HP  12V, Permanent Magnet
Gear Reduction Ratio 126:1
Clutch Cam Activated
Drum Dimension Ф1.47″x3.19″(Ф37.5x81mm)
Cable (Dia x L) Ф7/32″x49″(Ф5.4mmx15mm)
Rope(Dia x L) Ф7/32″x49″(Ф5.4mmx15m)
Motor 1.32m
Switch Control Lead 3m
Battery Cable 1.83m
Overall Dimension 13″x4.8″x5.0″(330x123x128mm)
Mounting Bolt Pattern Ф3″x4.9″(Ф76.2x124mm)
Packing Size 34x24x34cm 2PCS/CTN
Weight(Cable Winch) N.W/G.W: 19kg/21kg
Weight(Rope Winch) N.W/G.W: 15kg/17kg
